Vectorworks x Soundvision Project

Designed a full show environment from scratch.

Used Vectorworks to build the venue layout, stage, truss structure, and lighting system - including fixture placement, focus, power, and data distribution, as well as camera positions.

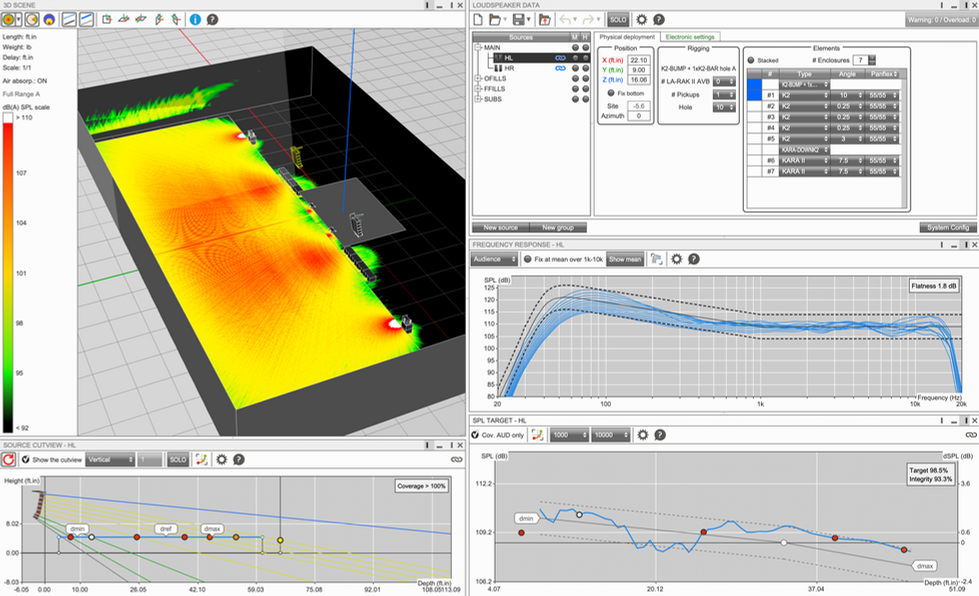

Then modeled the PA in Soundvision, implementing front fills and outfills, achieving only a 3 dB variation from front to back of the room.

Integrated the system back into Vectorworks via DXF, and finalized the workflow by creating an LA Network Manager file based on the Soundvision design.
